Numark Orbit Mapper

Download

24 Oct, 2013 - 20:04

Hi all,

I tried to build a midi-mapper for the Numark Orbit, a wireless dj/vj controller.

The node only works in combination with the vvvv.json mapping file included in the zip file, which you can open and use with the Numark Orbit Editor(download:http://www.numark.com/ozone).
Once you've opened the vvvv.json, you can see how I mapped the Orbit,feel free to change colours and behaviour, but don't change channels or notes, that will screw it in VVVV.

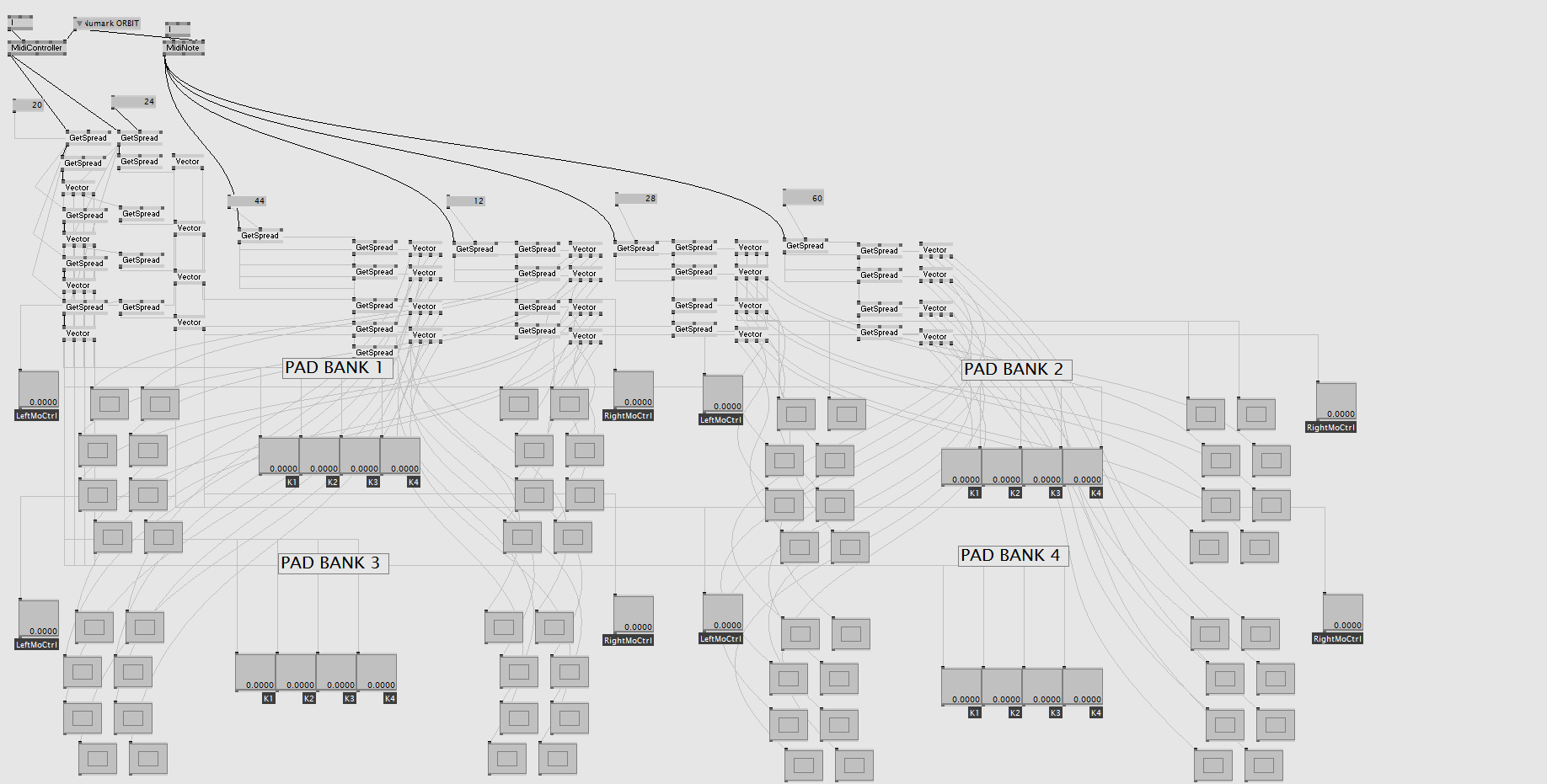

The Patch: I tried to arrange it as logical as possible, just link the outputs to the desired inputs.
I preconfigured the 4 Pad Banks in the following way:

Pad Bank 1-3: PadBangs with 2 toggles at the inner lowest row K1-K4 are working as faders from 0-1, as well as the motion controllers.

Pad Bank 4: same as 1-3, but intended as color outputs, changeable in the Editor.
The patch doesn't work when the Editor is opened at the same time.

It's not perfect, but maybe useful for some of you :)

have fun!

Element
