BVH (Skeleton BVH)

Author:	mino
Date:	27 May, 2012
Category:	plugin
Credits:	mino

Download

64bit

0-BVH_1.1.zip

29 May, 2012 - 14:32

every Parse() with InvariantInfo option

Description

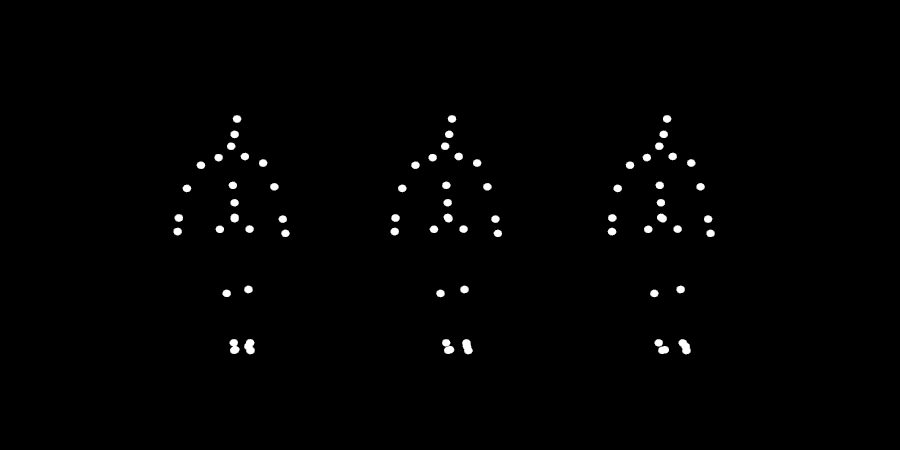

The Biovision Hierarchy (BVH) is one of the motion capture data file format. BVH node outputs Skeleton data from .bvh file.

about Biovision Hierarchy: http://en.wikipedia.org/wiki/Biovision_Hierarchy

you can download .bvh on the web. for example Free Motion capture Data

this plugin inspired from: http://www.perfume-global.com/

Source

source code available on github. https://github.com/mino218/vvvvPlugins

Comments

Comments are no longer accepted.
Please create a new topic in the vvvv beta forum to discuss this contribution.

hi mino with beta 27.2 i get this error:

00:06:03 ERR : Exception occured in TMPluginWrapperNode.Evaluate: Input string was not in a correct format. 00:06:03 - : To help us track this error down, enable the ExceptionDialog via the menu or starting vvvv with /showexceptions. 00:06:03 ERR : Exception occured in TMPluginWrapperNode.Evaluate: Object reference not set to an instance of an object. 00:06:03 - : To help us track this error down, enable the ExceptionDialog via the menu or starting vvvv with /showexceptions.

frame time and Frames = 0 any ideas? beta28?

@circuitb thanks for report! plugin tested & created with beta27.1. now i downloaded 27.2 and running no problem. please wait next report.

also source code available now:-)

beta27.1 or 27.2 with the new source code same results sounds like i'm alone in the dark ;) anyone else?

same problem here frames=0 render with only axis and grid... 27.1 and 27.2

@circuitb, @Noir is some node show red? maybe BVH or GetJointTransform... please show error report here from showexceptions ON via the vvvv menu.

someone working?

no red nodes so far but 2 exceptions msg:

------------------------------------------------------------------------------
Exception class: EClrException
Exception message: Input string was not in a correct format.
Exception address: 00000000
------------------------------------------------------------------------------
System.FormatException: Input string was not in a correct format.
   at System.Number.ParseDouble(String value, NumberStyles options, NumberFormatInfo numfmt)
   at VVVV.Nodes.BVHLoader.ParseJoint(Int32& index, List`1& tokens, BVHJoint parent)
   at VVVV.Nodes.BVHLoader.ParseHierarchy(String data)
   at VVVV.Nodes.BVHLoader.Load(String Filename)
   at VVVV.Nodes.BVHNode.Evaluate(Int32 SpreadMax)
------------------------------------------------------------------------------
Main thread ID = 3648
Exception thread ID = 3648
------------------------------------------------------------------------------
Exception stack
Stack list, generated 29/05/2012 03:14:31
<005918D1>{vvvv.exe    } ClrUtils.ClrCheck (Line 1048, "ClrUtils.pas" + 2)
<0065052B>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.EvaluateV2Plugin (Line 303, "PluginNodes.pas" + 1)
<0065031E>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.Evaluate (Line 257, "PluginNodes.pas" + 24)
<00651C8D>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.CalculateNodeAndOutputSliceCounts (Line 936, "PluginNodes.pas" + 8)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00622712>{vvvv.exe    } IONodes.TMNodeNode.CalculateNodeAndOutputSliceCounts (Line 1225, "IONodes.pas" + 11)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3A4>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3197, "Graph.pas" + 21)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<00651C78>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.CalculateNodeAndOutputSliceCounts (Line 932, "PluginNodes.pas" + 4)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<0065ACC1>{vvvv.exe    } PluginPins.TMSetMatrixNode_.CalculateNodeAndOutputSliceCounts (Line 1382, "PluginPins.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<0066FAAD>{vvvv.exe    } ex9TransformNodes.TMArbitraryTransform.CalculateNodeAndOutputSliceCounts (Line 1449, "ex9TransformNodes.pas" + 6)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<00686C4E>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1125, "Graph.pas" + 10)
<00686FBA>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1287, "Graph.pas" + 0)
<0058FAA3>{vvvv.exe    } RenderNodes.TMLayerNode.CalculateNodeAndOutputSliceCounts (Line 71, "RenderNodes.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3A4>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3197, "Graph.pas" + 21)
<00688BE4>{vvvv.exe    } Graph.TMPin._Prepare (Line 2369, "Graph.pas" + 3)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D30>{vvvv.exe    } Graph.TMBasicNode.ValidateAllInputs (Line 1182, "Graph.pas" + 2)
<006EE0D6>{vvvv.exe    } GroupNodes.TMGroupNode.EvaluateCB (Line 204, "GroupNodes.pas" + 5)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00688D93>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2412, "Graph.pas" + 17)
<006491D3>{vvvv.exe    } RendererNodes.TMRendererNode.ValidateLayers (Line 552, "RendererNodes.pas" + 1)
<006E768E>{vvvv.exe    } ex9RendererNode.TMex9RendererNode.ValidateLayers (Line 957, "ex9RendererNode.pas" + 7)
<00648D84>{vvvv.exe    } RendererNodes.TMRendererNode.EvaluateCB (Line 419, "RendererNodes.pas" + 31)
<00688B2C>{vvvv.exe    } Graph.TMPin.SetSliceCount (Line 2329, "Graph.pas" + 15)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<00648721>{vvvv.exe    } RendererNodes.TMRendererNode.PrepareGraph (Line 183, "RendererNodes.pas" + 1)
<0068718B>{vvvv.exe    } Graph.TMBasicNode.PrepareGraphCB (Line 1353, "Graph.pas" + 2)
<0069B909>{vvvv.exe    } Events.TMEvent.Call (Line 403, "Events.pas" + 11)
<00698D3F>{vvvv.exe    } MainLoop.TMMainLoop.DoTimer (Line 209, "MainLoop.pas" + 28)
<00508B92>{vvvv.exe    } IdleTimer.TMIdleTimer.AppIdle (Line 165, "IdleTimer.pas" + 46)
<00480B35>{vvvv.exe    } Forms.TApplication.Idle
<0047FFA7>{vvvv.exe    } Forms.TApplication.HandleMessage
<0048028F>{vvvv.exe    } Forms.TApplication.Run
<00882F5D>{vvvv.exe    } vvvv.vvvv (Line 24, "" + 7)
------------------------------------------------------------------------------
Call stack for main thread
Stack list, generated 29/05/2012 03:14:31
<771C0BD2>{ntdll.dll   } ZwGetContextThread









------------------------------------------------------------------------------
Exception class: EClrException
Exception message: Object reference not set to an instance of an object.
Exception address: 00000000
------------------------------------------------------------------------------
System.NullReferenceException: Object reference not set to an instance of an object.
   at VVVV.Nodes.GetJointTransform.Evaluate(Int32 SpreadMax)
------------------------------------------------------------------------------
Main thread ID = 3648
Exception thread ID = 3648
------------------------------------------------------------------------------
Exception stack
Stack list, generated 29/05/2012 03:17:37
<005918D1>{vvvv.exe    } ClrUtils.ClrCheck (Line 1048, "ClrUtils.pas" + 2)
<0065050F>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.EvaluateV1Plugin (Line 298, "PluginNodes.pas" + 1)
<0065031E>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.Evaluate (Line 257, "PluginNodes.pas" + 24)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00651C8D>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.CalculateNodeAndOutputSliceCounts (Line 936, "PluginNodes.pas" + 8)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<0065ACC1>{vvvv.exe    } PluginPins.TMSetMatrixNode_.CalculateNodeAndOutputSliceCounts (Line 1382, "PluginPins.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<0066FAAD>{vvvv.exe    } ex9TransformNodes.TMArbitraryTransform.CalculateNodeAndOutputSliceCounts (Line 1449, "ex9TransformNodes.pas" + 6)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<00686C4E>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1125, "Graph.pas" + 10)
<00686FBA>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1287, "Graph.pas" + 0)
<0058FAA3>{vvvv.exe    } RenderNodes.TMLayerNode.CalculateNodeAndOutputSliceCounts (Line 71, "RenderNodes.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3A4>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3197, "Graph.pas" + 21)
<00688BE4>{vvvv.exe    } Graph.TMPin._Prepare (Line 2369, "Graph.pas" + 3)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D30>{vvvv.exe    } Graph.TMBasicNode.ValidateAllInputs (Line 1182, "Graph.pas" + 2)
<006EE0D6>{vvvv.exe    } GroupNodes.TMGroupNode.EvaluateCB (Line 204, "GroupNodes.pas" + 5)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00688D93>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2412, "Graph.pas" + 17)
<006491D3>{vvvv.exe    } RendererNodes.TMRendererNode.ValidateLayers (Line 552, "RendererNodes.pas" + 1)
<006E768E>{vvvv.exe    } ex9RendererNode.TMex9RendererNode.ValidateLayers (Line 957, "ex9RendererNode.pas" + 7)
<00648D84>{vvvv.exe    } RendererNodes.TMRendererNode.EvaluateCB (Line 419, "RendererNodes.pas" + 31)
<00688B2C>{vvvv.exe    } Graph.TMPin.SetSliceCount (Line 2329, "Graph.pas" + 15)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<00648721>{vvvv.exe    } RendererNodes.TMRendererNode.PrepareGraph (Line 183, "RendererNodes.pas" + 1)
<0068718B>{vvvv.exe    } Graph.TMBasicNode.PrepareGraphCB (Line 1353, "Graph.pas" + 2)
<0069B909>{vvvv.exe    } Events.TMEvent.Call (Line 403, "Events.pas" + 11)
<00698D3F>{vvvv.exe    } MainLoop.TMMainLoop.DoTimer (Line 209, "MainLoop.pas" + 28)
<00508B92>{vvvv.exe    } IdleTimer.TMIdleTimer.AppIdle (Line 165, "IdleTimer.pas" + 46)
<00480B35>{vvvv.exe    } Forms.TApplication.Idle
<0047FFA7>{vvvv.exe    } Forms.TApplication.HandleMessage
<0048028F>{vvvv.exe    } Forms.TApplication.Run
<00882F5D>{vvvv.exe    } vvvv.vvvv (Line 24, "" + 7)
------------------------------------------------------------------------------
Call stack for main thread
Stack list, generated 29/05/2012 03:17:37
<771C0BD2>{ntdll.dll   } ZwGetContextThread
----------------------------------------------------------------------------

@circuitb thanks! i found some report here: Why does System.Convert(“0”) throw a FormatException on some systems?

and create two test dll to detect problem. could you try it?

BVH_InvariantInfo

from

translate.x = double.Parse(tokens<index++>);

translate.x = double.Parse(tokens<index++>, System.Globalization.NumberFormatInfo.InvariantInfo);

BVH_replace0to0.0

from

translate.x = double.Parse(tokens<index++>);

string s = tokens<index++>;
if (s == "0") s = "0.0";
translate.x = double.Parse(s);

replace0to0.0 version:

Exception class: EClrException
Exception message: Input string was not in a correct format.
Exception address: 00000000
------------------------------------------------------------------------------
System.FormatException: Input string was not in a correct format.
   at System.Number.ParseDouble(String value, NumberStyles options, NumberFormatInfo numfmt)
   at VVVV.Nodes.BVHLoader.ParseJoint(Int32& index, List`1& tokens, BVHJoint parent)
   at VVVV.Nodes.BVHLoader.ParseHierarchy(String data)
   at VVVV.Nodes.BVHLoader.Load(String Filename)
   at VVVV.Nodes.BVHNode.Evaluate(Int32 SpreadMax)
------------------------------------------------------------------------------
Main thread ID = 3816
Exception thread ID = 3816
------------------------------------------------------------------------------
Exception stack
Stack list, generated 29/05/2012 12:57:25
<005918D1>{vvvv.exe    } ClrUtils.ClrCheck (Line 1048, "ClrUtils.pas" + 2)
<0065052B>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.EvaluateV2Plugin (Line 303, "PluginNodes.pas" + 1)
<0065031E>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.Evaluate (Line 257, "PluginNodes.pas" + 24)
<00651C8D>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.CalculateNodeAndOutputSliceCounts (Line 936, "PluginNodes.pas" + 8)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00622712>{vvvv.exe    } IONodes.TMNodeNode.CalculateNodeAndOutputSliceCounts (Line 1225, "IONodes.pas" + 11)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3A4>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3197, "Graph.pas" + 21)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<00651C78>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.CalculateNodeAndOutputSliceCounts (Line 932, "PluginNodes.pas" + 4)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<0065ACC1>{vvvv.exe    } PluginPins.TMSetMatrixNode_.CalculateNodeAndOutputSliceCounts (Line 1382, "PluginPins.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<0066FAAD>{vvvv.exe    } ex9TransformNodes.TMArbitraryTransform.CalculateNodeAndOutputSliceCounts (Line 1449, "ex9TransformNodes.pas" + 6)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<00686C4E>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1125, "Graph.pas" + 10)
<00686FBA>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1287, "Graph.pas" + 0)
<0058FAA3>{vvvv.exe    } RenderNodes.TMLayerNode.CalculateNodeAndOutputSliceCounts (Line 71, "RenderNodes.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3A4>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3197, "Graph.pas" + 21)
<00688BE4>{vvvv.exe    } Graph.TMPin._Prepare (Line 2369, "Graph.pas" + 3)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D30>{vvvv.exe    } Graph.TMBasicNode.ValidateAllInputs (Line 1182, "Graph.pas" + 2)
<006EE0D6>{vvvv.exe    } GroupNodes.TMGroupNode.EvaluateCB (Line 204, "GroupNodes.pas" + 5)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00688D93>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2412, "Graph.pas" + 17)
<006491D3>{vvvv.exe    } RendererNodes.TMRendererNode.ValidateLayers (Line 552, "RendererNodes.pas" + 1)
<006E768E>{vvvv.exe    } ex9RendererNode.TMex9RendererNode.ValidateLayers (Line 957, "ex9RendererNode.pas" + 7)
<00648D84>{vvvv.exe    } RendererNodes.TMRendererNode.EvaluateCB (Line 419, "RendererNodes.pas" + 31)
<00688B2C>{vvvv.exe    } Graph.TMPin.SetSliceCount (Line 2329, "Graph.pas" + 15)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<00648721>{vvvv.exe    } RendererNodes.TMRendererNode.PrepareGraph (Line 183, "RendererNodes.pas" + 1)
<0068718B>{vvvv.exe    } Graph.TMBasicNode.PrepareGraphCB (Line 1353, "Graph.pas" + 2)
<0069B909>{vvvv.exe    } Events.TMEvent.Call (Line 403, "Events.pas" + 11)
<00698D3F>{vvvv.exe    } MainLoop.TMMainLoop.DoTimer (Line 209, "MainLoop.pas" + 28)
<00508B92>{vvvv.exe    } IdleTimer.TMIdleTimer.AppIdle (Line 165, "IdleTimer.pas" + 46)
<00480B35>{vvvv.exe    } Forms.TApplication.Idle
<0047FFA7>{vvvv.exe    } Forms.TApplication.HandleMessage
<0048028F>{vvvv.exe    } Forms.TApplication.Run
<00882F5D>{vvvv.exe    } vvvv.vvvv (Line 24, "" + 7)
------------------------------------------------------------------------------
Call stack for main thread
Stack list, generated 29/05/2012 12:57:25
<77C30BD2>{ntdll.dll   } ZwGetContextThread





Exception class: EClrException
Exception message: Object reference not set to an instance of an object.
Exception address: 00000000
------------------------------------------------------------------------------
System.NullReferenceException: Object reference not set to an instance of an object.
   at VVVV.Nodes.GetJointTransform.Evaluate(Int32 SpreadMax)
------------------------------------------------------------------------------
Main thread ID = 3816
Exception thread ID = 3816
------------------------------------------------------------------------------
Exception stack
Stack list, generated 29/05/2012 12:58:04
<005918D1>{vvvv.exe    } ClrUtils.ClrCheck (Line 1048, "ClrUtils.pas" + 2)
<0065050F>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.EvaluateV1Plugin (Line 298, "PluginNodes.pas" + 1)
<0065031E>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.Evaluate (Line 257, "PluginNodes.pas" + 24)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00651C8D>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.CalculateNodeAndOutputSliceCounts (Line 936, "PluginNodes.pas" + 8)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<0065ACC1>{vvvv.exe    } PluginPins.TMSetMatrixNode_.CalculateNodeAndOutputSliceCounts (Line 1382, "PluginPins.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<0066FAAD>{vvvv.exe    } ex9TransformNodes.TMArbitraryTransform.CalculateNodeAndOutputSliceCounts (Line 1449, "ex9TransformNodes.pas" + 6)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<00686C4E>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1125, "Graph.pas" + 10)
<00686FBA>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1287, "Graph.pas" + 0)
<0058FAA3>{vvvv.exe    } RenderNodes.TMLayerNode.CalculateNodeAndOutputSliceCounts (Line 71, "RenderNodes.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3A4>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3197, "Graph.pas" + 21)
<00688BE4>{vvvv.exe    } Graph.TMPin._Prepare (Line 2369, "Graph.pas" + 3)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D30>{vvvv.exe    } Graph.TMBasicNode.ValidateAllInputs (Line 1182, "Graph.pas" + 2)
<006EE0D6>{vvvv.exe    } GroupNodes.TMGroupNode.EvaluateCB (Line 204, "GroupNodes.pas" + 5)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00688D93>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2412, "Graph.pas" + 17)
<006491D3>{vvvv.exe    } RendererNodes.TMRendererNode.ValidateLayers (Line 552, "RendererNodes.pas" + 1)
<006E768E>{vvvv.exe    } ex9RendererNode.TMex9RendererNode.ValidateLayers (Line 957, "ex9RendererNode.pas" + 7)
<00648D84>{vvvv.exe    } RendererNodes.TMRendererNode.EvaluateCB (Line 419, "RendererNodes.pas" + 31)
<00688B2C>{vvvv.exe    } Graph.TMPin.SetSliceCount (Line 2329, "Graph.pas" + 15)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<00648721>{vvvv.exe    } RendererNodes.TMRendererNode.PrepareGraph (Line 183, "RendererNodes.pas" + 1)
<0068718B>{vvvv.exe    } Graph.TMBasicNode.PrepareGraphCB (Line 1353, "Graph.pas" + 2)
<0069B909>{vvvv.exe    } Events.TMEvent.Call (Line 403, "Events.pas" + 11)
<00698D3F>{vvvv.exe    } MainLoop.TMMainLoop.DoTimer (Line 209, "MainLoop.pas" + 28)
<00508B92>{vvvv.exe    } IdleTimer.TMIdleTimer.AppIdle (Line 165, "IdleTimer.pas" + 46)
<00480B35>{vvvv.exe    } Forms.TApplication.Idle
<0047FFA7>{vvvv.exe    } Forms.TApplication.HandleMessage
<0048028F>{vvvv.exe    } Forms.TApplication.Run
<00882F5D>{vvvv.exe    } vvvv.vvvv (Line 24, "" + 7)
------------------------------------------------------------------------------
Call stack for main thread
Stack list, generated 29/05/2012 12:58:04
<77C30BD2>{ntdll.dll   } ZwGetContextThread


========================================



InvariantInfo version:

Exception class: EClrException
Exception message: Input string was not in a correct format.
Exception address: 00000000
------------------------------------------------------------------------------
System.FormatException: Input string was not in a correct format.
   at System.Number.ParseSingle(String value, NumberStyles options, NumberFormatInfo numfmt)
   at VVVV.Nodes.BVHLoader.ParseMotion(String data)
   at VVVV.Nodes.BVHLoader.Load(String Filename)
   at VVVV.Nodes.BVHNode.Evaluate(Int32 SpreadMax)
------------------------------------------------------------------------------
Main thread ID = 4668
Exception thread ID = 4668
------------------------------------------------------------------------------
Exception stack
Stack list, generated 29/05/2012 12:59:32
<005918D1>{vvvv.exe    } ClrUtils.ClrCheck (Line 1048, "ClrUtils.pas" + 2)
<0065052B>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.EvaluateV2Plugin (Line 303, "PluginNodes.pas" + 1)
<0065031E>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.Evaluate (Line 257, "PluginNodes.pas" + 24)
<00651C8D>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.CalculateNodeAndOutputSliceCounts (Line 936, "PluginNodes.pas" + 8)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00622712>{vvvv.exe    } IONodes.TMNodeNode.CalculateNodeAndOutputSliceCounts (Line 1225, "IONodes.pas" + 11)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3A4>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3197, "Graph.pas" + 21)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<00651C78>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.CalculateNodeAndOutputSliceCounts (Line 932, "PluginNodes.pas" + 4)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<0065ACC1>{vvvv.exe    } PluginPins.TMSetMatrixNode_.CalculateNodeAndOutputSliceCounts (Line 1382, "PluginPins.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<0066FAAD>{vvvv.exe    } ex9TransformNodes.TMArbitraryTransform.CalculateNodeAndOutputSliceCounts (Line 1449, "ex9TransformNodes.pas" + 6)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<00686C4E>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1125, "Graph.pas" + 10)
<00686FBA>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1287, "Graph.pas" + 0)
<0058FAA3>{vvvv.exe    } RenderNodes.TMLayerNode.CalculateNodeAndOutputSliceCounts (Line 71, "RenderNodes.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3A4>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3197, "Graph.pas" + 21)
<00688BE4>{vvvv.exe    } Graph.TMPin._Prepare (Line 2369, "Graph.pas" + 3)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D30>{vvvv.exe    } Graph.TMBasicNode.ValidateAllInputs (Line 1182, "Graph.pas" + 2)
<006EE0D6>{vvvv.exe    } GroupNodes.TMGroupNode.EvaluateCB (Line 204, "GroupNodes.pas" + 5)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00688D93>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2412, "Graph.pas" + 17)
<006491D3>{vvvv.exe    } RendererNodes.TMRendererNode.ValidateLayers (Line 552, "RendererNodes.pas" + 1)
<006E768E>{vvvv.exe    } ex9RendererNode.TMex9RendererNode.ValidateLayers (Line 957, "ex9RendererNode.pas" + 7)
<00648D84>{vvvv.exe    } RendererNodes.TMRendererNode.EvaluateCB (Line 419, "RendererNodes.pas" + 31)
<00688B2C>{vvvv.exe    } Graph.TMPin.SetSliceCount (Line 2329, "Graph.pas" + 15)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<00648721>{vvvv.exe    } RendererNodes.TMRendererNode.PrepareGraph (Line 183, "RendererNodes.pas" + 1)
<0068718B>{vvvv.exe    } Graph.TMBasicNode.PrepareGraphCB (Line 1353, "Graph.pas" + 2)
<0069B909>{vvvv.exe    } Events.TMEvent.Call (Line 403, "Events.pas" + 11)
<00698D3F>{vvvv.exe    } MainLoop.TMMainLoop.DoTimer (Line 209, "MainLoop.pas" + 28)
<00508B92>{vvvv.exe    } IdleTimer.TMIdleTimer.AppIdle (Line 165, "IdleTimer.pas" + 46)
<00480B35>{vvvv.exe    } Forms.TApplication.Idle
<0047FFA7>{vvvv.exe    } Forms.TApplication.HandleMessage
<0048028F>{vvvv.exe    } Forms.TApplication.Run
<00882F5D>{vvvv.exe    } vvvv.vvvv (Line 24, "" + 7)
------------------------------------------------------------------------------
Call stack for main thread
Stack list, generated 29/05/2012 12:59:32
<77C30BD2>{ntdll.dll   } ZwGetContextThread



Exception class: EClrException
Exception message: Object reference not set to an instance of an object.
Exception address: 00000000
------------------------------------------------------------------------------
System.NullReferenceException: Object reference not set to an instance of an object.
   at VVVV.Nodes.GetJointTransform.Evaluate(Int32 SpreadMax)
------------------------------------------------------------------------------
Main thread ID = 4668
Exception thread ID = 4668
------------------------------------------------------------------------------
Exception stack
Stack list, generated 29/05/2012 13:00:05
<005918D1>{vvvv.exe    } ClrUtils.ClrCheck (Line 1048, "ClrUtils.pas" + 2)
<0065050F>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.EvaluateV1Plugin (Line 298, "PluginNodes.pas" + 1)
<0065031E>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.Evaluate (Line 257, "PluginNodes.pas" + 24)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00651C8D>{vvvv.exe    } PluginNodes.TMPluginWrapperNode.CalculateNodeAndOutputSliceCounts (Line 936, "PluginNodes.pas" + 8)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<0065ACC1>{vvvv.exe    } PluginPins.TMSetMatrixNode_.CalculateNodeAndOutputSliceCounts (Line 1382, "PluginPins.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<0066FAAD>{vvvv.exe    } ex9TransformNodes.TMArbitraryTransform.CalculateNodeAndOutputSliceCounts (Line 1449, "ex9TransformNodes.pas" + 6)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3D7>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3202, "Graph.pas" + 26)
<00689ECD>{vvvv.exe    } Graph.TMPin.GetUserSliceCount (Line 2958, "Graph.pas" + 1)
<00689B27>{vvvv.exe    } Graph.TMPin.InfluenceNodeSliceCount (Line 2822, "Graph.pas" + 1)
<00686C4E>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1125, "Graph.pas" + 10)
<00686FBA>{vvvv.exe    } Graph.TMBasicNode.CalculateNodeAndOutputSliceCounts (Line 1287, "Graph.pas" + 0)
<0058FAA3>{vvvv.exe    } RenderNodes.TMLayerNode.CalculateNodeAndOutputSliceCounts (Line 71, "RenderNodes.pas" + 1)
<00686CAF>{vvvv.exe    } Graph.TMBasicNode.Prepare (Line 1153, "Graph.pas" + 20)
<00688BEE>{vvvv.exe    } Graph.TMPin._Prepare (Line 2370, "Graph.pas" + 4)
<0068A3A4>{vvvv.exe    } Graph.TMPin.EarlyPrepare (Line 3197, "Graph.pas" + 21)
<00688BE4>{vvvv.exe    } Graph.TMPin._Prepare (Line 2369, "Graph.pas" + 3)
<00688D58>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2404, "Graph.pas" + 9)
<00686D30>{vvvv.exe    } Graph.TMBasicNode.ValidateAllInputs (Line 1182, "Graph.pas" + 2)
<006EE0D6>{vvvv.exe    } GroupNodes.TMGroupNode.EvaluateCB (Line 204, "GroupNodes.pas" + 5)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00688D93>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2412, "Graph.pas" + 17)
<006491D3>{vvvv.exe    } RendererNodes.TMRendererNode.ValidateLayers (Line 552, "RendererNodes.pas" + 1)
<006E768E>{vvvv.exe    } ex9RendererNode.TMex9RendererNode.ValidateLayers (Line 957, "ex9RendererNode.pas" + 7)
<00648D84>{vvvv.exe    } RendererNodes.TMRendererNode.EvaluateCB (Line 419, "RendererNodes.pas" + 31)
<00688B2C>{vvvv.exe    } Graph.TMPin.SetSliceCount (Line 2329, "Graph.pas" + 15)
<00688C52>{vvvv.exe    } Graph.TMPin.Evaluate (Line 2383, "Graph.pas" + 3)
<00688DAE>{vvvv.exe    } Graph.TMPin._ValidateAllSlices (Line 2417, "Graph.pas" + 22)
<00686D68>{vvvv.exe    } Graph.TMBasicNode.ValidateAllOutputs (Line 1204, "Graph.pas" + 2)
<00648721>{vvvv.exe    } RendererNodes.TMRendererNode.PrepareGraph (Line 183, "RendererNodes.pas" + 1)
<0068718B>{vvvv.exe    } Graph.TMBasicNode.PrepareGraphCB (Line 1353, "Graph.pas" + 2)
<0069B909>{vvvv.exe    } Events.TMEvent.Call (Line 403, "Events.pas" + 11)
<00698D3F>{vvvv.exe    } MainLoop.TMMainLoop.DoTimer (Line 209, "MainLoop.pas" + 28)
<00508B92>{vvvv.exe    } IdleTimer.TMIdleTimer.AppIdle (Line 165, "IdleTimer.pas" + 46)
<00480B35>{vvvv.exe    } Forms.TApplication.Idle
<0047FFA7>{vvvv.exe    } Forms.TApplication.HandleMessage
<0048028F>{vvvv.exe    } Forms.TApplication.Run
<00882F5D>{vvvv.exe    } vvvv.vvvv (Line 24, "" + 7)
------------------------------------------------------------------------------
Call stack for main thread
Stack list, generated 29/05/2012 13:00:05
<77C30BD2>{ntdll.dll   } ZwGetContextThread

@circuitb thanks for report again. it seems InvariantInfo will clear this error. now uploaded BVH_1.1, which all Parse() method using InvariantInfo option. I hope you can see skeleton walking...

if still not working, let's talk with irc or skype.

bingo! it works thanks

1.1 It works thanks

really cool stuff, mino! 1.1 working flawless here :)

great! please enjoy ;)

I am not sure what I am doing wrong, but all I see is the axis on renderer box. I don't know coding, so the above discussion doesn't help me. May you help?

It looks really cool, if I could get to work. Will the patch provide coordinates of the bvh points as the skeleton moves?

I am working with 45beta28.1 including the addon pack.
