PolyMap (beta, VL only)
| Author: | digitalwannabe |
| Date: | 13 Apr, 2016 |
| Category: | module |
| Credits: | all credits go to vvvv + community |
Download
64bit
Description
In order to get my head around a (triangulization) plugin I intend to write I decided to start by patching the logics surrounding it and it turns out- thanks to the glorious power of vvvv and the (new?) ClippingEar plugin- a simple version of this can be fully patched; and here it is:

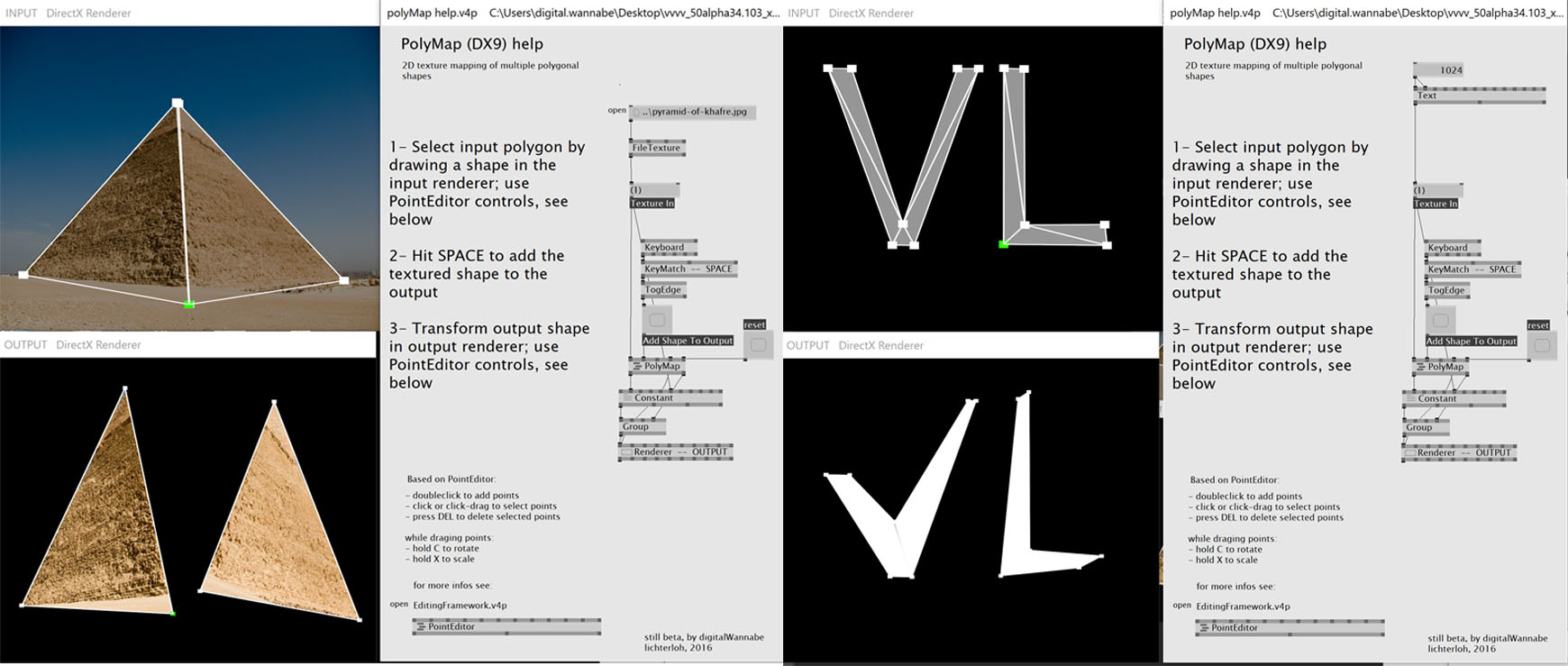

Draw any polygonal shape on a texture to select this part of the texture, then transform this (textured) shape in your output/projection. Multiple shapes supported. This can also be used in 3d mapping situations, eg in Egypt, as a last step to compensate for differences in virtual/real properties of your mapping object/projectors.
NOTE: -based on PointEditor -> VL ONLY; basically you can exchange the PointEditor with a spread to get this to work without VL, not done here for ease of use. -still beta for several reasons, mostly because I've just done this now and haven't tested it ;) also triangulization won't be fine enough for heavy output transformations (will "break" your texture), probably not fast enough too; but it should work fine in simple cases, especially when working with triangles.
ToDo: -better triangulization (where needed); will work on this asap. -transform options for individual shapes; might come if PointEditor supports multiple lines -bezier shapes; requires to add support for closed bezier curves to BezierEditor -option to add holes to shapes, might come with better triangulization -DX11
