Multi-Screen Homography with Soft Edges
| Author: | catweasel |
| Date: | 01 May, 2013 |
| Category: | module |
| Credits: | catweasel, vvvvgroup |
Download
64bit

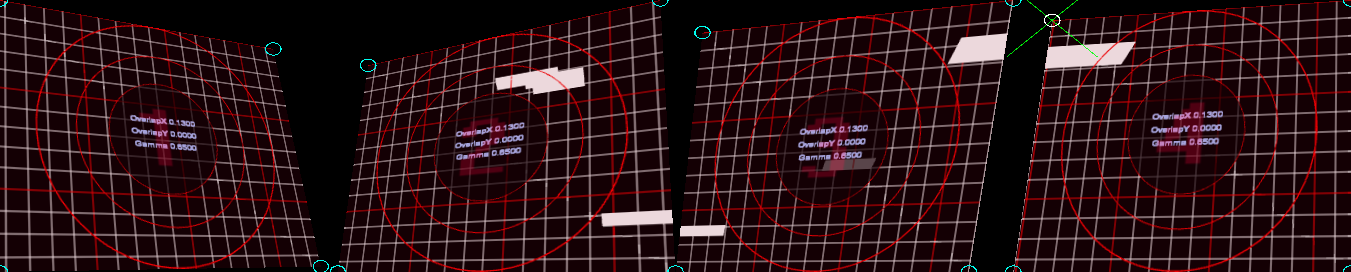

Multi-Screen Homography with Soft Edges
Description
Just cleaned up a module for adjusting multiple screens with homography and softedge blending, hope you find it useful. Open the help patch to see how it works
cat
Comments
Comments are no longer accepted.Please create a new topic in the vvvv beta forum to discuss this contribution.
thanks for sharing
fantastic, and really useful, well done, thanks for sharing!!
thanks
Nice one cat, I have patched similar things from time to time, but nothing working this nice! good work!
love the idea of moving the points with the keys i would like to do the same with a 3x3 grid for more precise mapping i will take this patch as a example
i would like to add a feature to control the amount of blending did you test it already with beamers ? if i put the 3 grids in blend,add it over exposed in the intersection area. Are you sure its well calculated?
great patch anyway! thnks for sharing
@vjc4 you can adjust the blend by holding down B and use the arrowkeys, left and right to adjust and + and - to select which parameter you want to adjust and it is even displayed at the center of each screen.
I should point out that you can also hold shift to speed up the movements for quick rough positioning, not sure if I mentioned that in the help patch? @vjc4 the soft edge is done via the vvvv default softedge patch, its worked for me, is it the black level that is the issue, there is not any black level compensation atm...
Is there a DX11 version somewhere?
|edit| i've just manage to build a DX11 "dirty" solution by using MultiScreen (DX11) from ((dx11-modules-and-shaders-addition-ii)))
I hope I will have time to make it clean and release it one day.
|edit2| well after 2 hours trying to use my version, i had to consider using hard edges... my version is a nightmare to use
sooooo awesome...
Very useful, big Thanks.
