Shadow maps using depthbuffer

Author:	elliotwoods
Date:	31 Jul, 2012
Category:	demo
Credits:	elliotwoods

Download

64bit

0-shadow map 0.1.zip

31 Jul, 2012 - 13:23

Description

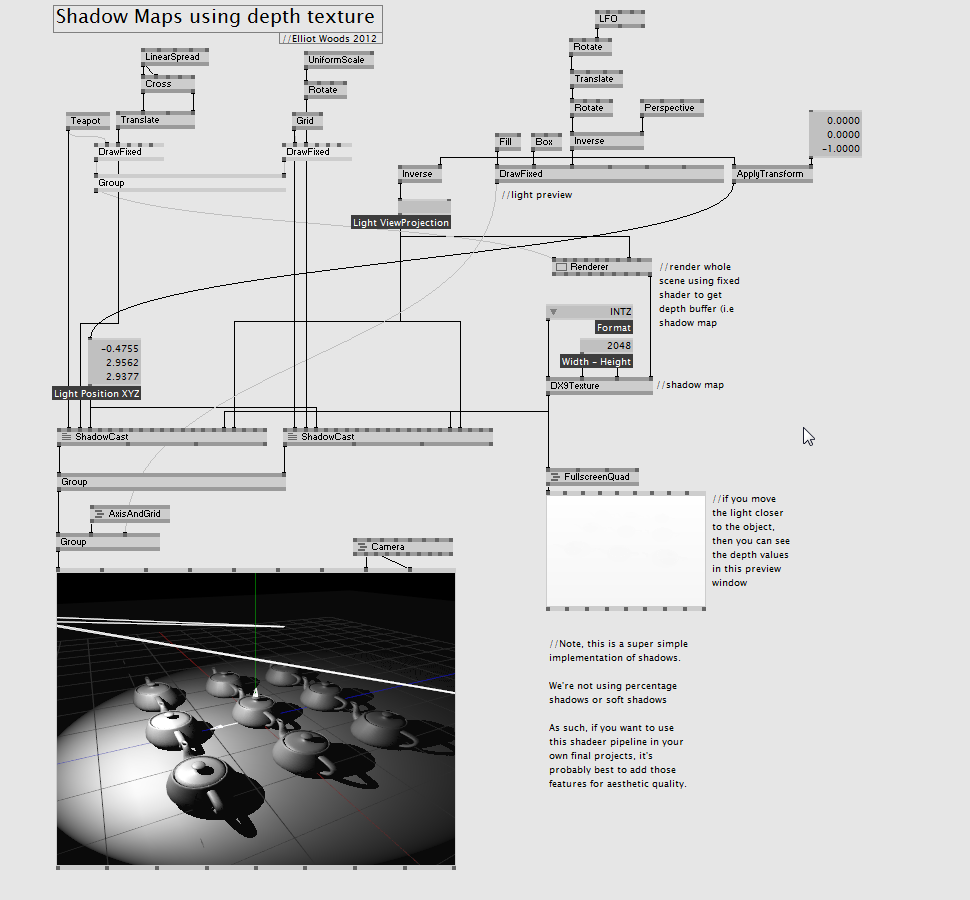

This patch and shader demonstrate how you can use a depth buffer as a shadow map to cast shadows from a light source.

Note that this is meant more as a learning tool than for your final projects, as there's many aesthetic improvements that should be made before deploying as a virtual scene lighting tool.

I've uploaded it here mostly to demonstrate the principle of how to perform this type of shadow mapping.

Comments

Comments are no longer accepted.
Please create a new topic in the vvvv beta forum to discuss this contribution.

thx elliot

+1 perfect !

but doesnt work for me, plus I cant find this INTZ format texture..

@nissidis : you need the latest vvvv alpha release (alpha28 not beta27)

Yes, just noticed it in the tags section above.. :) thx ! (NITZ isn't it only for ATI's hardware ? :S)

from http://aras-p.info/texts/D3D9GPUHacks.html#depth

INTZ is for recent (DX10+) hardware. With recent drivers, all three major IHVs expose this. According to ATI <1>, it also allows using stencil buffer while rendering. Also allows reading from depth texture while it’s still being used for depth testing (but not depth writing). Looks like this applies to NV & Intel parts as well.

It should work on NVidia, ATI and Intel

thanks a lot Eliot!

Another question : these shadows' artifacts (these that you mentioned before) are they because of Sampler, File Format or smoothstep() ?

PS: Is fast and accurate, I love it!

this is the 'de-facto' way of treating the shadows: http://www.gamerendering.com/2008/11/15/percentage-closer-filtering-for-shadow-mapping/

but an even better way is to defocus them with a soft shadow: http://www.rastertek.com/dx11tut42.html

both are fairly easy additions to the above

very nice elliot, i like it very much and the performance is very good, just would like to know how to remove artifacts from the shadows,,, any tip to achieve this? thanks

if you increase the FOV of perspective node and pull the light source further than the initial position (for example in Y axis) you will get a much better result eliminating almost all these artifacts. I still have the soft shadowing problem since I am totaly noob in hlsl programming and concepts :/

@Psykeview --> a 'hint' would be the device(EX.9) wich is rendering the INTZ texture (right side). Check there until you start seeing the teapots getting white/grey, this was the only practical way for me to understand what I was doing...
